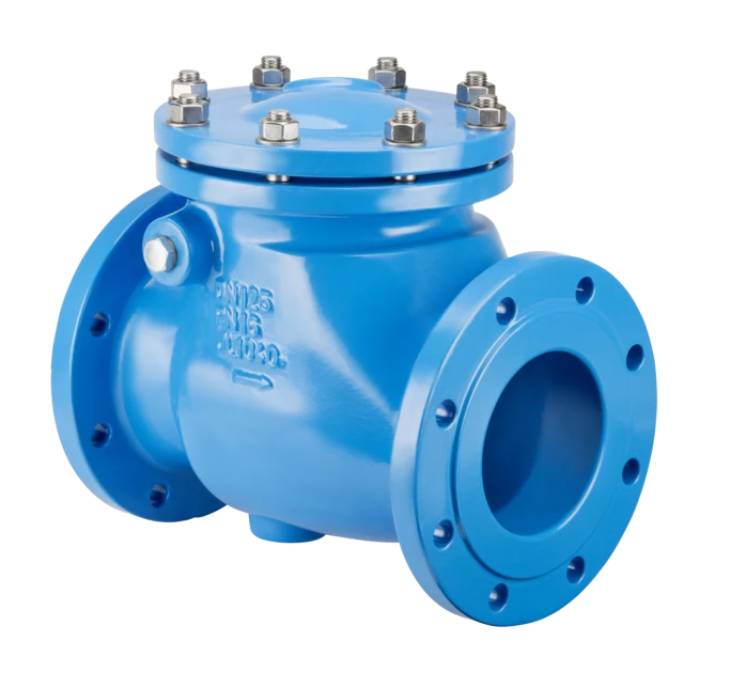

Einstefnuloki Flangs DN65 PN16

Einstefnuloki Hawle Flangs DN65 PN16
Þyngd: 15 kg

Eiginleikar

Diameter range DN 40–DN 300

Pressure rating PN 10 I PN 16

• Check valves protect the pipelines and plants against flow medium back-streaming
• The flap opens automatically in the flow according to the arrow on the valve housing
• Body length according to EN 558-1 GR 48
• Flange measured according to EN 1092-2, drilled according to EN 1092-2 | PN 10 standard; EN 1092-2 | PN 16 from DN 200 please specify upon ordering – additional standards upon request
• min. opening pressure 0.03 bar
• min. closing pressure 0.1 bar (tightness)
